| SKU:
KHN24537-1R

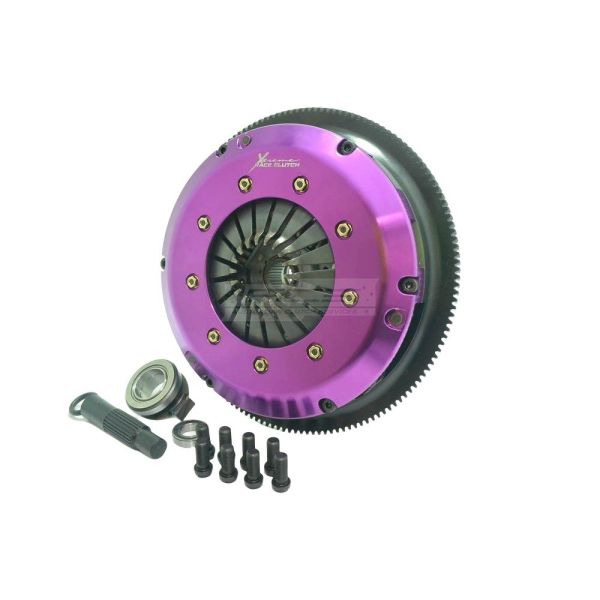

Xtreme Performance Sprung Ceramic Clutch Kit w/ Single Mass Conversion Flywheel
Honda Civic Type R FK8 17+/FL5 22+
This product is in stock & ready to be dispatched.
This product has very limited stock remaining.
Product will be in stock soon.
This product is not ready for immediate dispatch and will ship in the timeframe displayed.
This product is not available at this time. Request ETA Information
Earn [points_amount] when you buy this item.
-
International Shipping
We ship Worldwide
-
AUSSIE OWNED
-
FAST DISPATCH
-
WE PRICE MATCH
-
FLAT RATE SHIPPING
Description
Description
At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.
Stage 2 - 1B Sprung Ceramic
The sprung ceramic range of kits have been developed for motorsport applications where a higher heat and torque capacity is required. These discs utilise a sprung hub that helps to reduce shock loading and are commonly used in track cars that retain the factory transmission.
Recommended for: Motorsport Applications
Notes: Kit includes a Single Mass Conversion Flywheel
Technical Specifications
Technical Specifications
- Flywheel Step (mm): -9.53
- Clutch Disc Diameter (mm): 240
- Clutch Disc Spline Count: 24
- Clutch Disc Spline Diameter (mm): 26.4
- Disc Type: Sprung
- Friction Material: Ceramic
- Stage: 2R
- Recommended Use: Track
- Torque (Nm) Inc FOS: 910
- Torque (ftlbs) Inc FOS: 670
- Spigot Bush/Bearing Included: Yes
- Aligning Tool Included: Yes
- Flywheel Included: Single Mass
- Flywheel Bolts Included: Yes
- Pressure Plate Bolts Included: Yes
- Spline Grease Included: Yes
- Transport Weight (kg): 16.5
