Whiteline F And R Sway Bar Vehicle Kit

Mercedes A-Class W176/CLA-Class C117/GLA-Class X156
In Stock :

This product is in stock & ready to be dispatched.
Very low inventory :

This product has very limited stock remaining.
Incoming :

Product will be in stock soon.
Usually Ships In :

This product is not ready for immediate dispatch and will ship in the timeframe displayed.
Sold Out - Out of stock :

This product is not available at this time. Request ETA Information

$917.31
RRP $1,079.19 (Save 15%)

Earn [points_amount] when you buy this item.

Description


Engineered to 'Activate More Grip', BMK015 is a packaged solution designed to improve performance and enhance the driving experience of your vehicle. Boasting a 27mm 2 point adjustable front sway bar and 24mm 2 point adjustable rear sway bar, the kit is completed with high quality sway bar links and mounting accessories that ensure optimum performance and ease of installation. Achieve perfect balance and precise tuning with this Whiteline Sway Bar Kit.



Features:

  • Whiteline sway bars are principally designed to reduce body roll or sway while cornering.
  • Larger diameter sway bars offer a higher torsional resistance which in turn increases overall roll stiffness.
  • Take control with multi-point adjustment that allow the driver to fine tune vehicle characteristics to suit their driving preference or conditions.
  • Whiteline sway bar mounts utilise the latest technology synthetic elastomer combined with effective designs such as the internal bore knurling and grease retention lips for optimum lubrication & performance.
  • Forged ends ensure maximum strength and performance of the sway bar at the sway bar link mounting point.
  • These high strength links increase sway bar effectiveness and improve overall performance, increased rigidity and responsiveness which can be felt especially during lane changes and initial turn.
  • Manufactured from high quality alloy and include heavy duty steel ball joint ends ensuring maximum strength and durability.
  • Eliminate sway bar preload during installation and allow for on-car length adjustment of up to 25mm centre to centre.
  • Heavy duty ball joints adjust and rotate to any angular combination for ease of fitment and optimum performance.
  • Protective powder coating acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
  • Protective E-Coat coating acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
  • Featuring premium anodized alloy materials, Whiteline alloy products are anodized providing a long-lasting protective barrier to corrosion and wear but they look great too.
  • Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
  • Whiteline's latest technology synthetic elastomer formulation boasts resistance to oil, grease, ozone and weathering.
  • Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
  • Internal grease reservoirs provide continual self-lubrication for optimum friction management.
  • Install guide included providing detailed instructions on how to install your new Whiteline purchase .
  • This Whiteline kit is covered by a 3 Year / 60,000kms warranty including parts and labour.

    •

    Kit Includes:

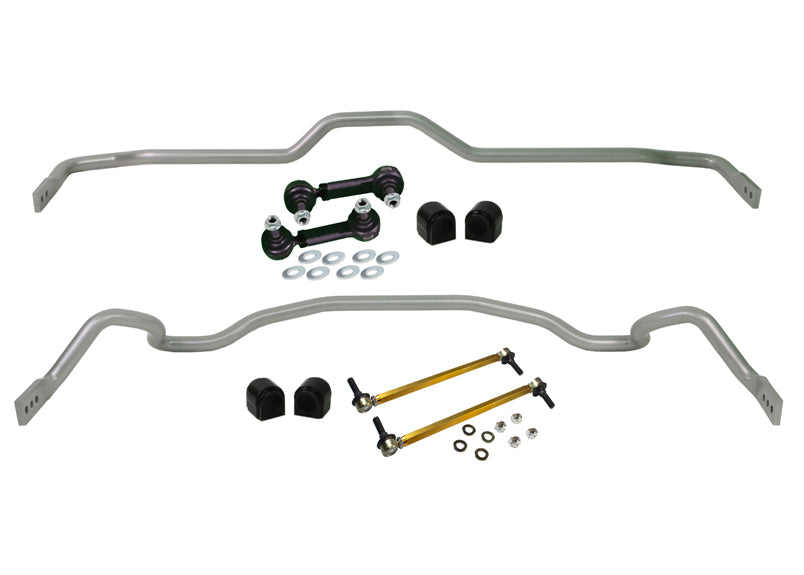

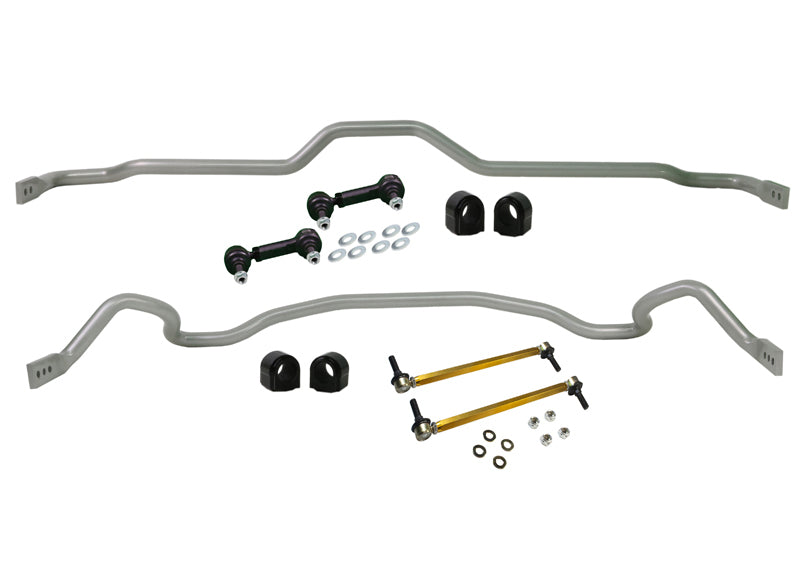

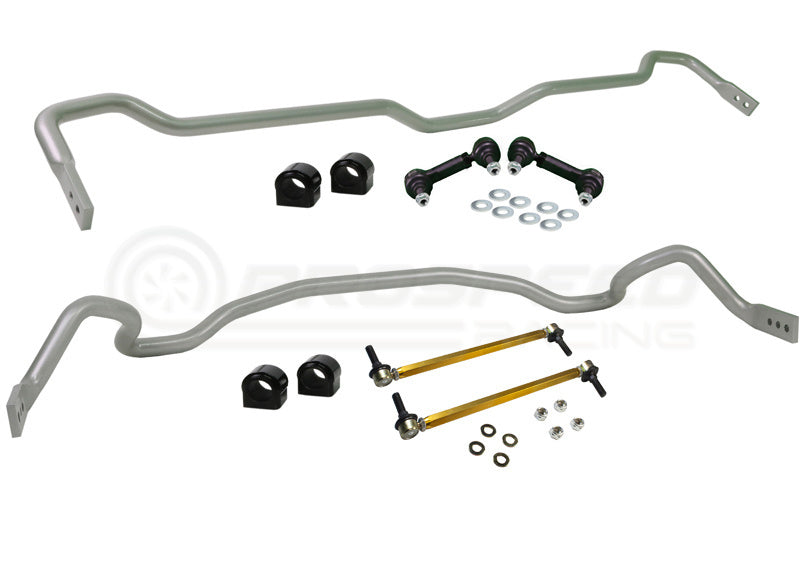

  • 2 Sway Bar, 4 Links, 4 Bushings, 12 Washers, 4 Nuts, Install Guide, Grease

    •

    Alignment Change:

  • N/A

    •

    Service Kit:

  • N/A

    •

    Installation:

  • Fitment Time (Hours): 4.5
  • Degree Of Fitment Difficulty: Trade Specialist
  • Fitment Notes: Refer Install Guide
  • Wheel Alignment Required: Yes

    •

    Vehicle Fitment and Important Notes:

  • 2015-2019 INFINITI Q30 - 4CYL (Contains BMF67Z, BMR96Z, KLC180-335 and KLC218 - essential to 'Activate more grip')
  • 2016-2019 INFINITI QX30 - 4CYL (Contains BMF67Z, BMR96Z, KLC180-335 and KLC218 - essential to 'Activate more grip')
  • 2012-2018 MERCEDES-BENZ A-CLASS W176 4CYL (Contains BMF67Z, BMR96Z, KLC180-335 and KLC218 - essential to 'Activate more grip')
  • 2013-2018 MERCEDES-BENZ A-CLASS W176 4CYL (Contains BMF67Z, BMR96Z, KLC180-335 and KLC218 - essential to 'Activate more grip')
  • 2011-2018 MERCEDES-BENZ B-CLASS W246 4CYL (Contains BMF67Z, BMR96Z, KLC180-335 and KLC218 - essential to 'Activate more grip')
  • 2013-2019 MERCEDES-BENZ CLA-CLASS C117 INCL AMG 4CYL (Contains BMF67Z, BMR96Z, KLC180-335 and KLC218 - essential to 'Activate more grip')
  • 2013-2019 MERCEDES-BENZ GLA-CLASS X156 INCL AMG 4CYL (Contains BMF67Z, BMR96Z, KLC180-335 and KLC218 - essential to 'Activate more grip')
    •

    Technical Specifications

    Swaybar Specifications:

    DIAMETERMATERIALADJUSTMENTNOTES
    Frt=27mm Rr=24mmSolid Spring SteelFrt=2 point adjustable and Rr=2 point adjustable

    Kit Specifications:

    KIT QTYBUSH QTYOD (A)ID (B)LENGTH (C) FLANGE THICKNESS (D)FLANGE ODC/TUBE QTYC/TUBE OD x ID x LENGTHCOMMENTS
