Tomei Unequal Length Headers
Subaru BRZ & Toyota 86 12-21, 22+
This product is in stock & ready to be dispatched.
This product has very limited stock remaining.
Product will be in stock soon.
This product is not ready for immediate dispatch and will ship in the timeframe displayed.
This product is not available at this time. Request ETA Information
Earn [points_amount] when you buy this item.
-
International Shipping
We ship Worldwide
-
AUSSIE OWNED
-
FAST DISPATCH
-
WE PRICE MATCH
-
FLAT RATE SHIPPING
Description
Description
The FA20 boxer engine inside the Toyota 86/Subaru BRZ can be said to be the successor to the EJ engine. At Tomei Powered, through our extensive testing, we've produced numerous EJ engine and exhaust parts. By applying our knowledge and experience of EJ engines to the ZN6/ZC6, we conducted even further tests to produce 2 new exhaust manifolds with different characteristics. Using this in conjunction with our new joint pipe, released at the same time, can yield even better results.
SPECIFICATIONS COMPARISON VS STOCK
- Unequal length layout for improved torque characteristics.
- Improved exhaust efficiency through catless design.
- Designed to minimize heat transfer to the oil pan.

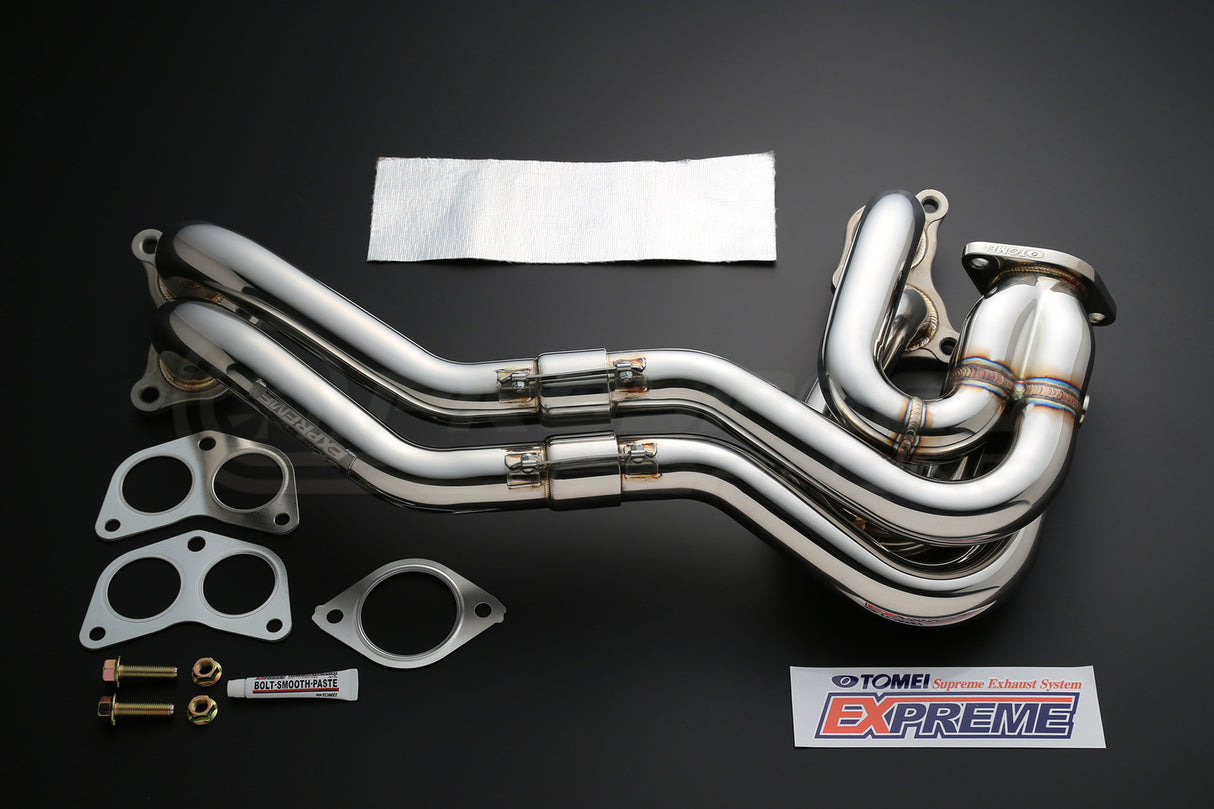

KIT CONTENTS:
- EXHAUST MANIFOLD (1)
- GASKET (ENGINE SIDE) (2)
- GASKET (JOINT PIPE SIDE) (1)
- EXHAUST REFLECTIVE HEAT SHEET (1)
- FLANGE BOLT (2)
- FLANGE NUT (2)
- BOLT SMOOTH PASTE (1)
- Includes all gaskets, nuts, bolts etc. required for installation.
Vehicle Fitment:
- 2012-2021 Subaru BRZ
- 2012-2021 Toyota 86
Technical Specifications
Technical Specifications
| | MATERIAL | LAYOUT | PIPE DIAMETER （Φ） | PIPE THICKNESS (mm) | FLANGE THICKNESS (mm) | WEIGHT (kg / lbs) | |||
| Port exit - 1st juncture | Port exit - 1st juncture | 2nd juncture - joint pipe | Front | Rear | |||||
| STOCK | - | 4-2-1 | 42.7 | 45.0 | 51.2 | 1.5 | 9.0 | 10.0 | 9.2 / 20.28 |
| TOMEI EQUAL LENGTH | SUS304 | 4-2-1 | 42.7 | 45.0 | 60.5 | 1.5 | 12.5 | 12.5 | 6.45 / 14.22 |
| TOMEI UNEQUAL LENGTH | SUS304 | 4-1 | 42.7 | - | 60.5 | 1.5 | 12.5 | 12.5 | 6.85 / 15.10 |
