 |  SKU: 20-0461

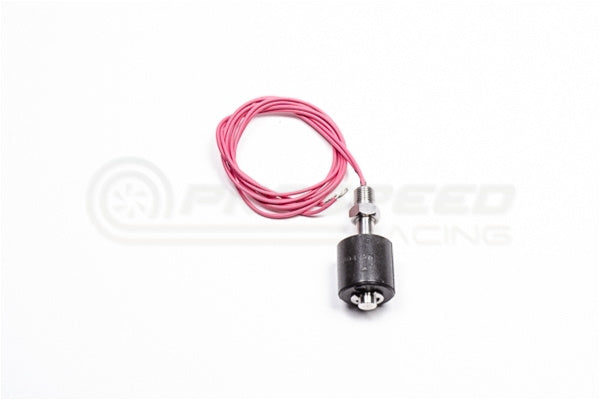

Radium Fuel Level Switch, 1/8" NPT

Incoming :

Product will be in stock soon.
In Stock :

This product is in stock & ready to be delivered.
Very low inventory :

This product has very limited stock remaining.
Out of stock :

This product is not available at this time.
$178.00

Earn [points_amount] when you buy this item.

Description

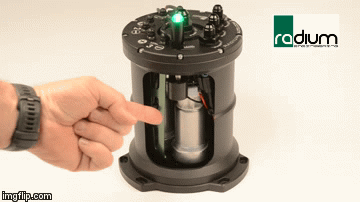

This 1/8" NPT fuel level switch should be installed inside the container, as shown below.

When fuel level drops, a switched signal can be sent to a unit such as a dashboard mounted indicator or programmable ECU input for safety purposes. The level switch is constructed of corrosion resistant stainless steel compatible with all fuel types. It includes 24" long, 20AWG flying leads.



NOTES:

  1. Polarity can easily be reversed by removing the E-clip and flipping the float.
  2. 1/8" NPT threaded port is required for installing.
  3. Always apply PTFE thread sealant to tapered pipe threads.


Fitment Table
