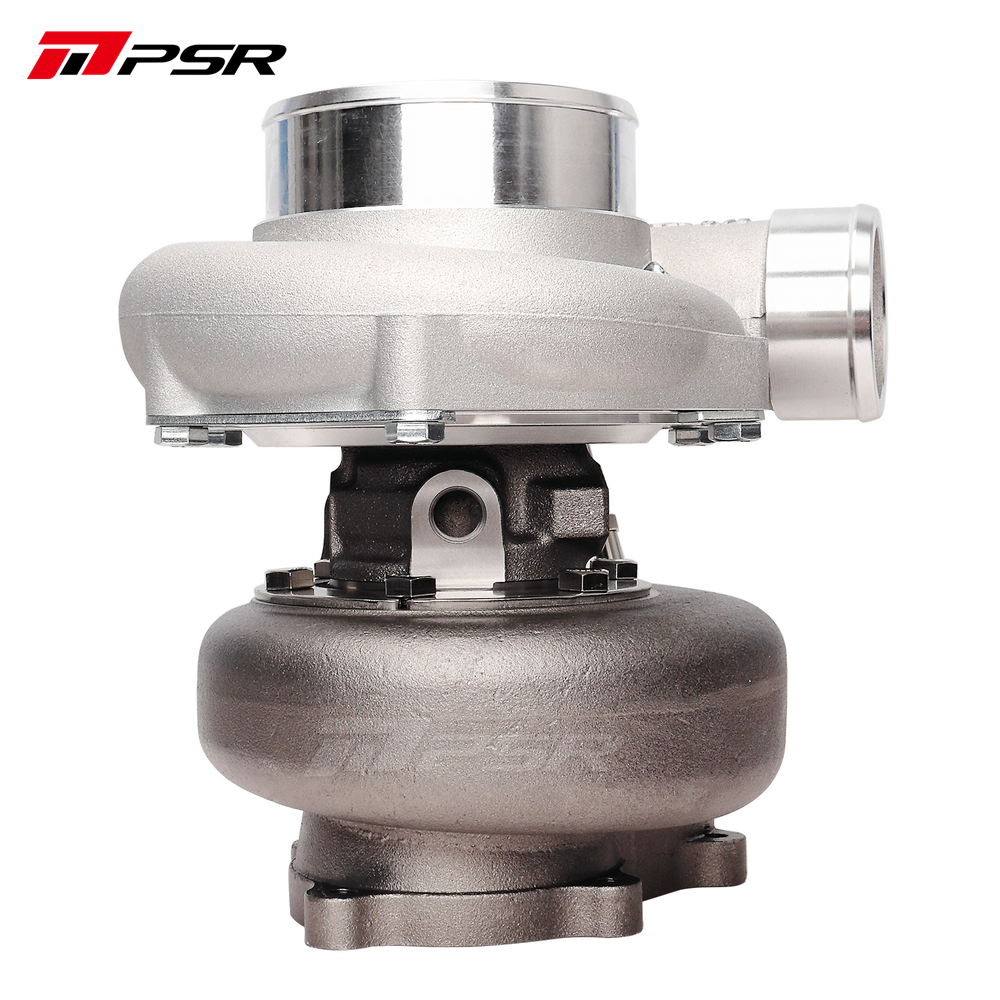

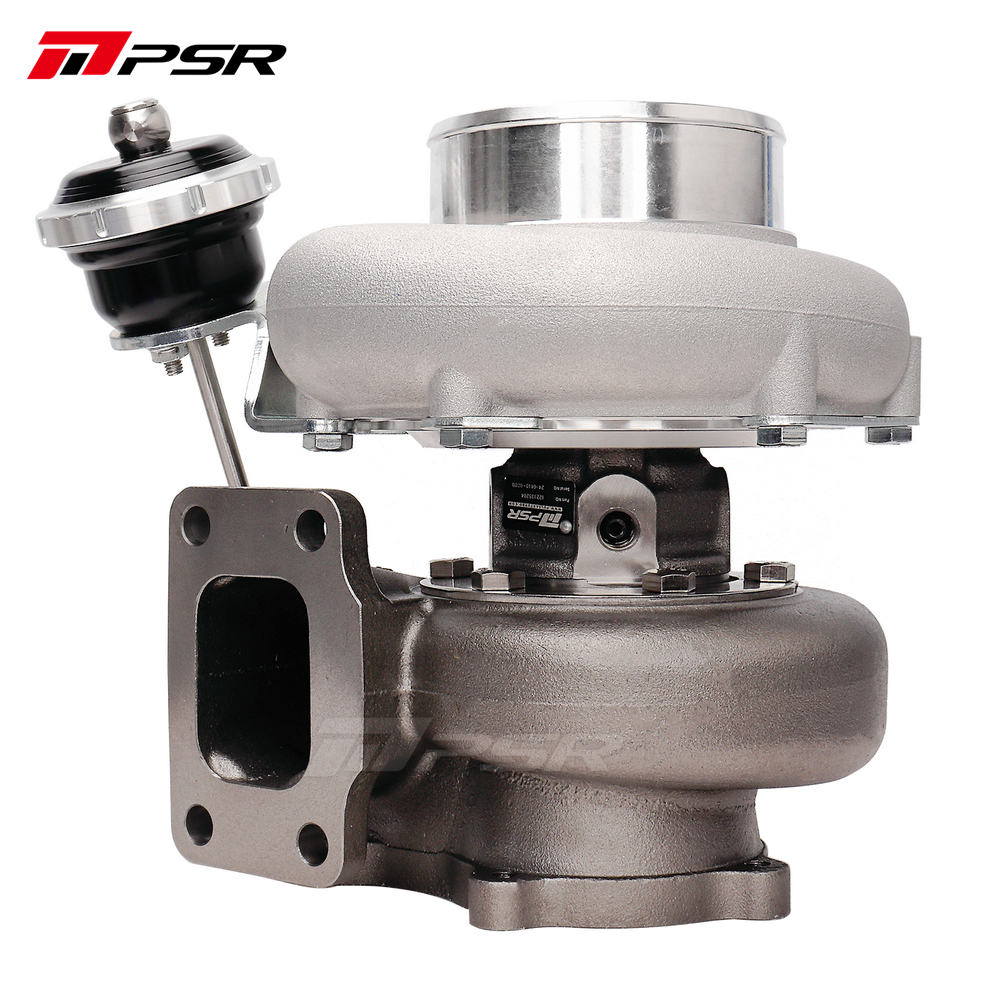

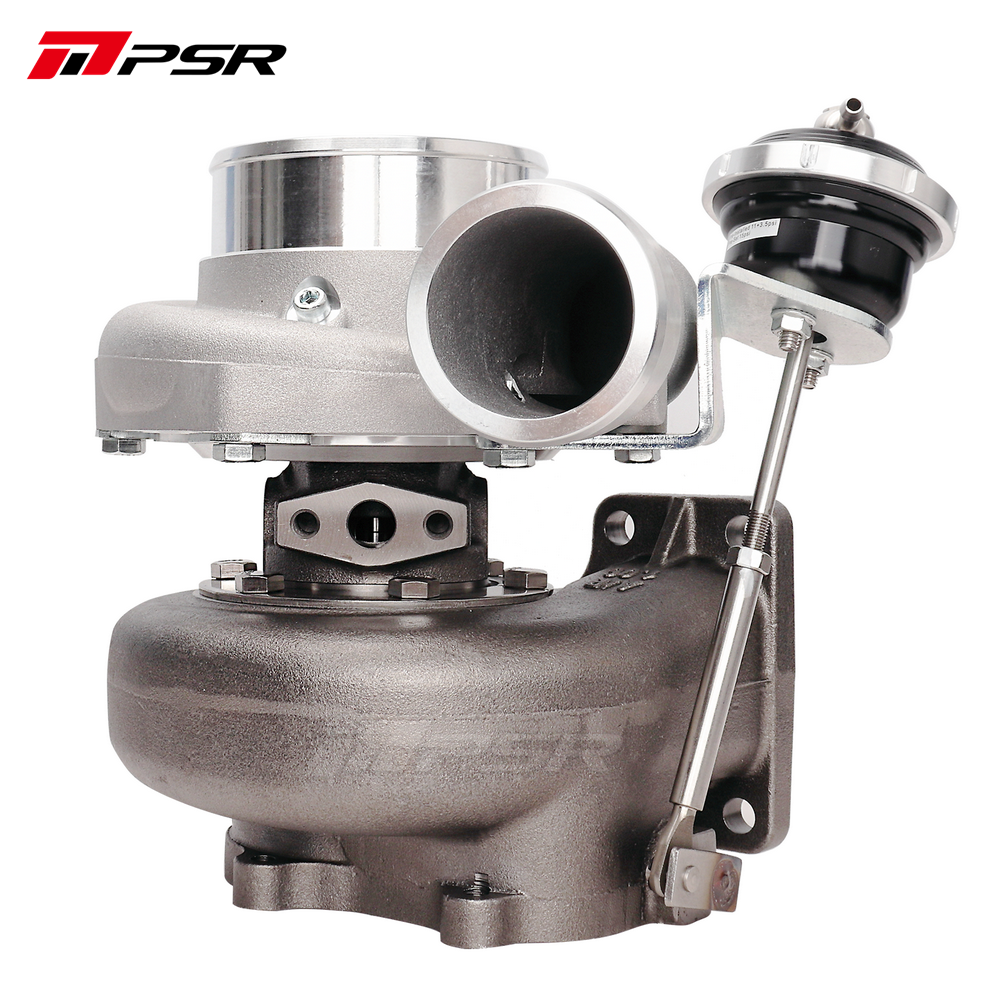

Pulsar Next Gen GTX3584RS Turbo

The Pulsar PSR6784 Turbocharger is built for drivers who demand both power and precision. Featuring a 1.06 or 1.15 A/R turbine housing and a standard compressor housing, this turbo is engineered for high flow and quick spool times, providing a responsive driving experience on both the street and track. With a 5, 10 or 15 PSI actuator for controlled boost levels, it delivers robust power gains without sacrificing durability or efficiency. Whether you’re looking to enhance performance for racing or daily driving, the PSR6784 offers the versatility and reliability to handle it all, making it a top choice for automotive enthusiasts.

• New Aerodynamic 10 blade billet compressor wheel flow more air over the stock cast or Gen1 11 blade billet wheel

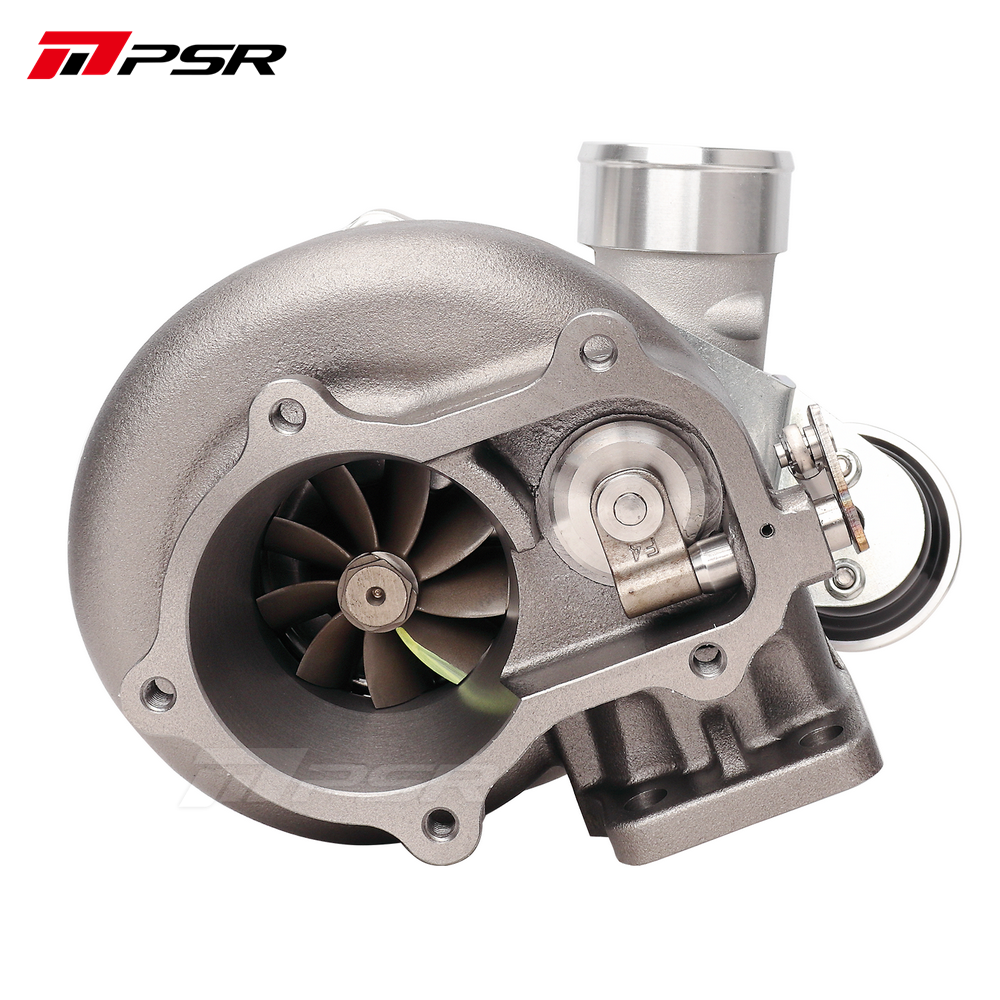

• New Aerodynamic 9 blade turbine wheel, less weight, lower inertia, and higher flowability
• Genuine structure and rebuildable dual ceramic ball bearing system

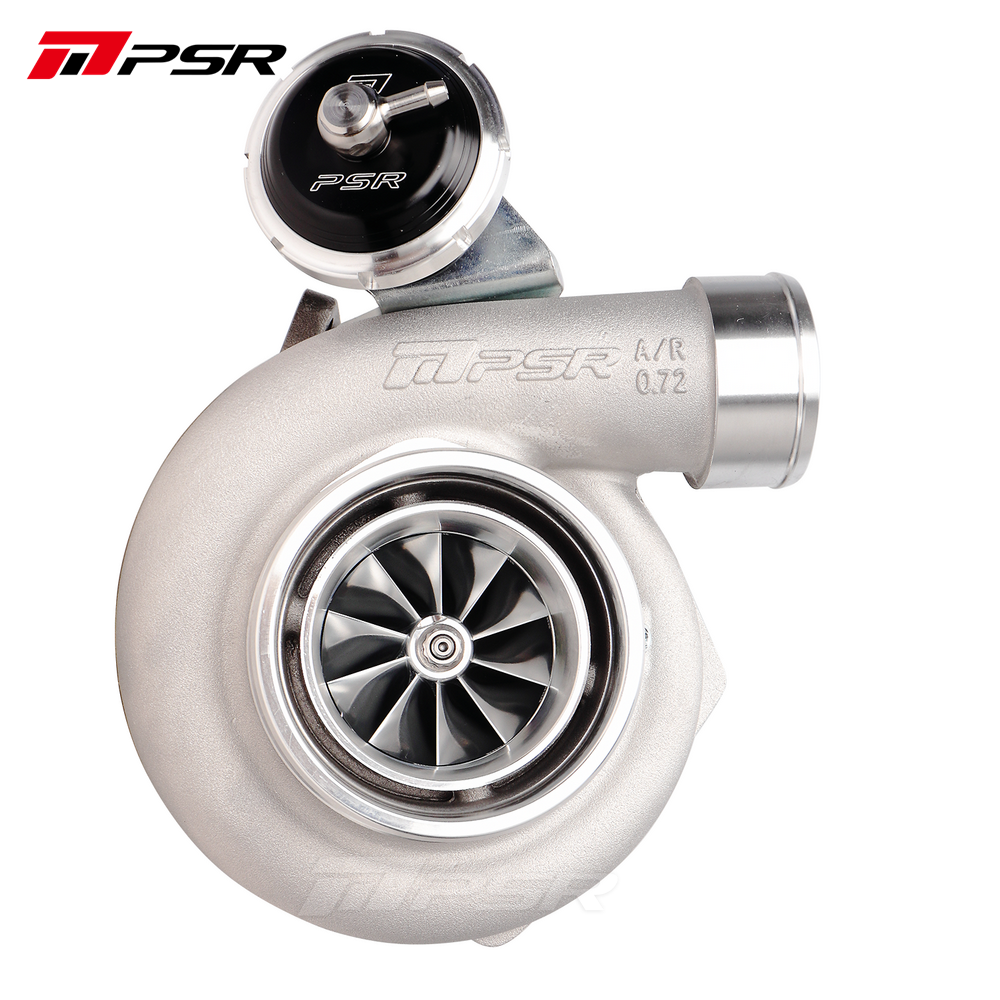

• Larger 0.72A/R compressor cover with Anti-Surge 4″ inlet

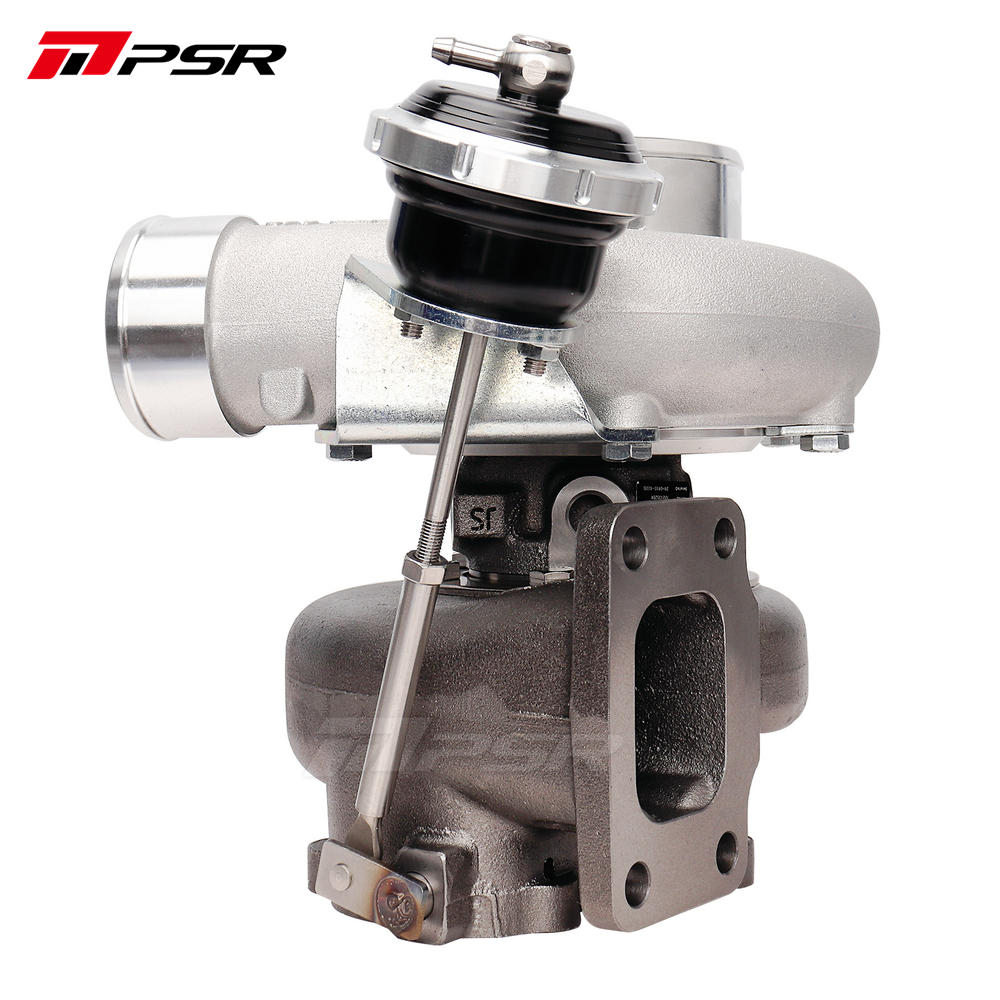

• Billet actuator with black anodized coating
• 3 Layer Stainless Steel 5 Bolt Gasket

• Compressor Wheel: 67.3*84.4mm(extended tip diameter: 87.3mm)
• RS Turbine Wheel for High Horsepower: 68*62.3mm
• Compressor Inlet: 4″ Hose
• Compressor Outlet: 2.5″ Hose
• Turbine Inlet: T3 Open
• Turbine Outlet: 5 Bolt
• Turbine housing internal wastegate hole: 33mm
• Water Ports: -6AN
• Oil Feed: -4AN to the Oil Restrictor
• Oil Drain: Std T3 Oil Drain Flange
• Actuator working pressure: 15psi/12psi/5psi
