Prosport 52mm Evo PK Series Performance Gauge Range - Red/Blue/Green/White

Prosport Performance Gauges consist of two important elements: the latest trend in Asia and hottest design in USA. Great importance is attached to the experience of users and the quality of the product, from the design of the dial and the shell to the internal movement, etc., which are details that cannot be ignored.

The Evo PK Series gauge range features a completely digital display and includes both a centre numerical readout as well as an outer bar sweeping gauge. The Evo PK Series backlight can be changed between Red/Blue/Green/White and also allows 6 levels of brightness and a night driving dimmer function. The Evo PK Series gauges also include a programmable warning and Peak Recall functions. All gauges in the Evo PK Series range include an external electric sensor where necessary.

Opening Ceremony

Each Evo PK Series gauge performs an opening ceremony when powered on. See below for a video of this in action:

Warning and Peak Functions

The Evo PK Series offer two additional functions: Peak Recall and Warning. The Peak function saves the highest value the gauge reached while driving and after pressing the Recall button allows this value to be displayed on the gauge. This Peak value can then be cleared after viewing and will automatically record a new Peak value.

The Warning function is fully programmable using the front buttons and the warning value can be set anyway within the gauge display range. If the gauge exceeds the set Warning value the gauge can beep, change colour or do both to alert the driver. This is ideal as you do not need to take your eyes off the road to check the gauge to ensure it's in a safe range.

Four Colour Backlight

The Evo PK series gauges range can be easily changed to either a Red, Blue, Green or White backlight colour using the front control buttons. The backlight has six stages of brightness for both daytime or nighttime modes.

Smoked Lens

All Evo PK Series gauges feature a smoked lens which appears almost completely black when the gauge is powered off. Once powered on the display is completely visible.

Daisy Chain Installation

Prosport Evo PK Series Gauges have an additional feature which allows them to daisy chain power from one gauge to the next. This greatly simplifies installation, as only one gauge needs to be wired for power and ground while the others can simply link to this gauge and chain from one another using the included daisy chain wire.

Signal/sensor wires will still be required for each gauge separately.

Included Accessories

Each Evo PK Series Gauge includes the following:

• 1 x Gauge
• 1 x Mounting Cup
• 1 x Visor
• 1 x Power Wire
• 1 x Daisy Chain Wire
• 1 x Mounting Bracket (with hardware)
• 1 x Sensor Unit + Wiring (where applicable)

_{*Additional accessories may be included for each particular gauge model. See details below}

Optional Accessories

Additional accessories may be required to finalise your gauge installation. See below for some examples which are sold separately:

• Gauge Pod/Cup (Universal Pod Included)
• Boost Tap (for boost gauges)
• Radiator Hose Adaptor (for water sensors)
• Oil Sandwich Plate Adaptor (for oil sensors)
• Oil Galley Plug Adaptor (for oil sensors)
• Inline Hose Tee Fitting (for oil/fuel sensors)
• Remote Sensor Mounting Kit (for oil/fuel sensors)

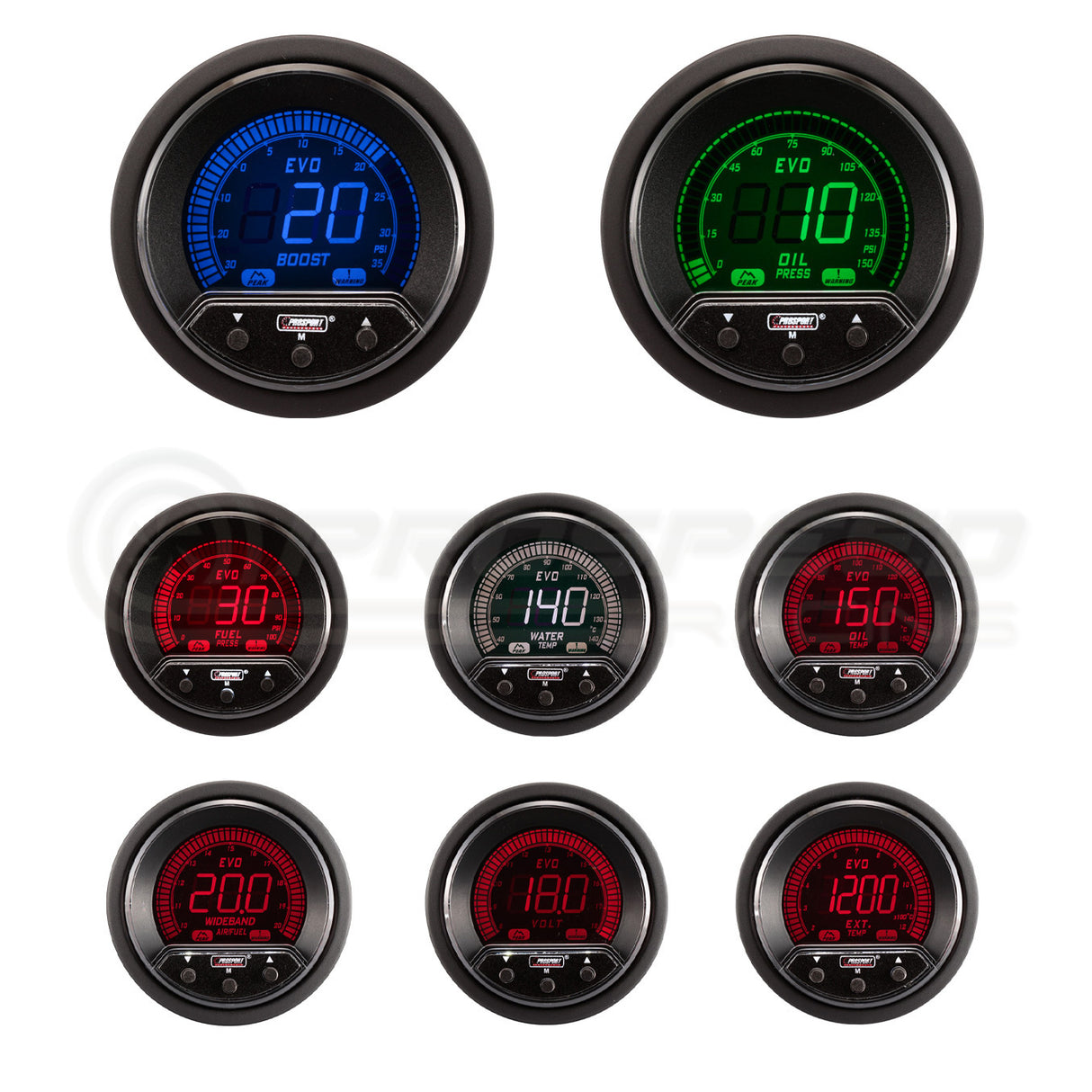

Gauge Lineup

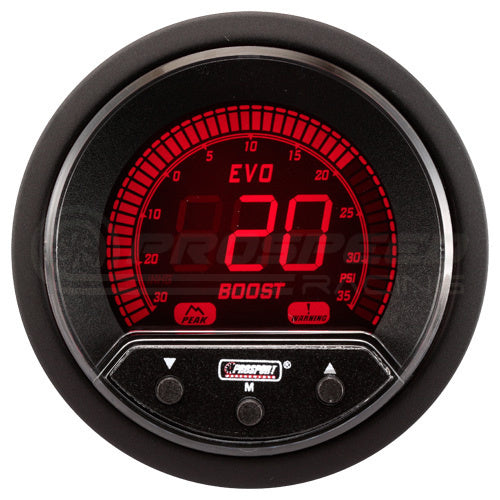

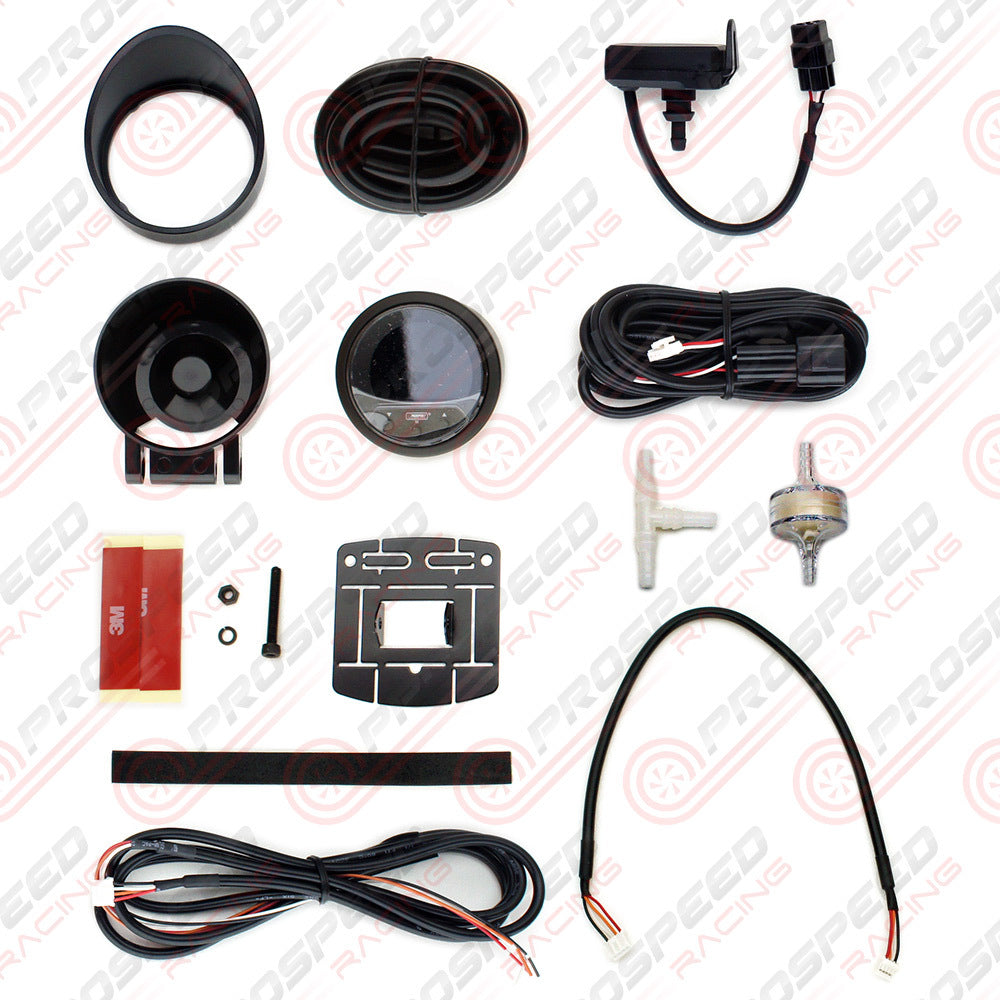

216EVOBO-PK - Boost Gauge (Electrical)

• -30inHg to +35psi display range.
• Electrical gauge, includes external MAP sensor which can be mounted in engine bay.
• 4mm hose barb fitting on sensor.
• Includes hose, tee piece and inline filter for installation.
• Requires existing manifold pressure/vacuum source. Newer vehicles may require a "boost tap" (sold separately) to create a pressure/vacuum source.

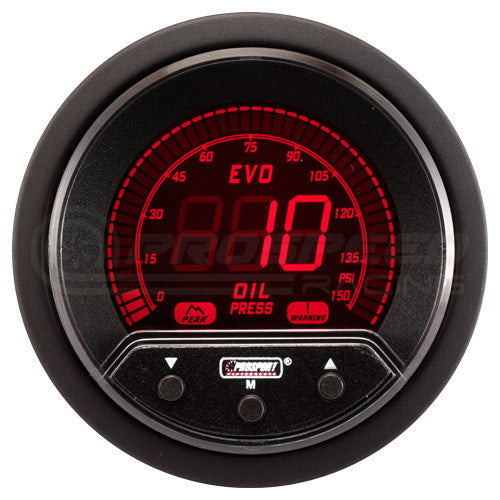

216EVOOP-PK - Oil Pressure Gauge (Electrical)

• 0-150psi display range.
• Electrical gauge, Includes external pressure sensor.
• Sensor thread: 1/8" NPT
• May require adaptor for oil pressure sensor (sold separately).
• For accuracy it is recommended not to mount sensor directly to engine. Use remote sensor kit (sold separately).

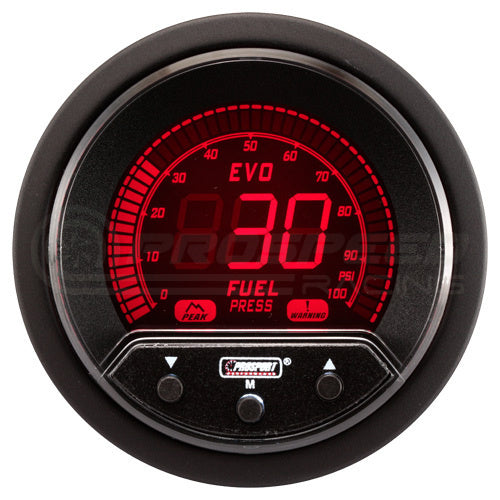

216EVOFP-PK - Fuel Pressure Gauge (Electrical)

• 0-100psi display range.
• Electrical gauge, Includes external pressure sensor.
• Sensor thread: 1/8" NPT
• May require adaptor for fuel pressure sensor (sold separately).
• For accuracy it is recommended not to mount sensor directly to engine. Use remote sensor kit (sold separately).

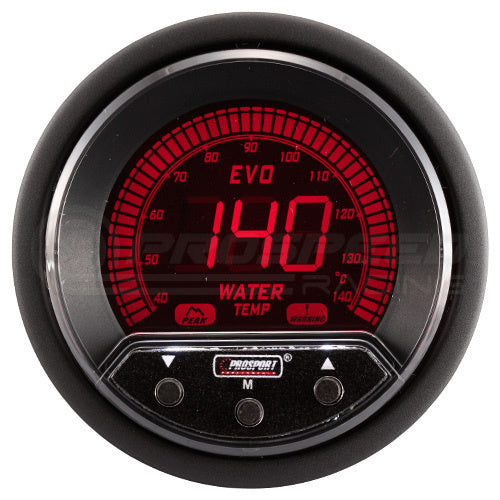

216EVOWT-PK - Water Temperature Gauge (Electrical)

• 40-140C display range.
• Electrical gauge, Includes external temperature sensor.
• Sensor thread: 1/8" NPT
• May require adpator for water temperature sensor (sold separately).

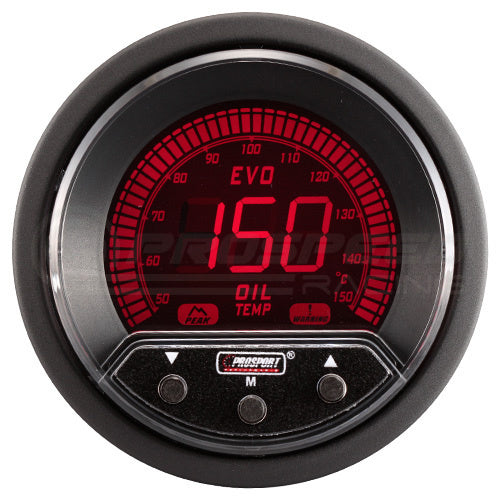

216EVOOT-PK - Oil Temperature Gauge (Electrical)

• 50-150C display range.
• Electrical gauge, Includes external temperature sensor.
• Sensor thread: 1/8" NPT
• May require adpator for oil temperature sensor (sold separately).

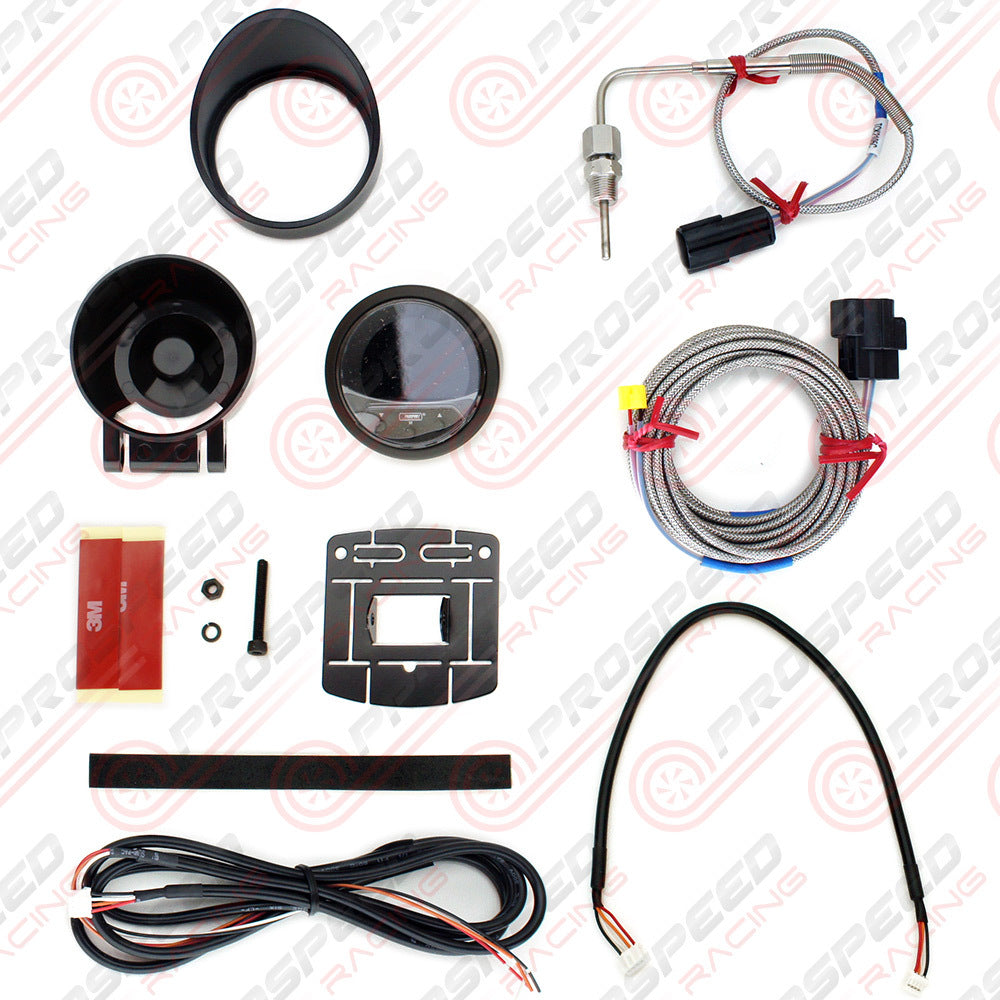

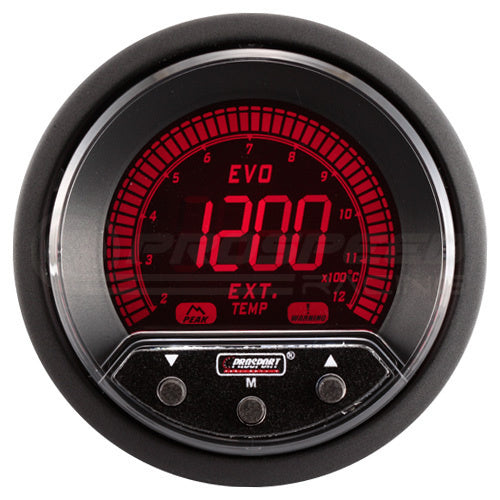

216EVOEGT-PK - Exhaust Gas Temperature EGT Gauge (Electrical)

• 0-1200C display range (outer sweep 200-1200C as 10 x 100C units).
• Electrical gauge, Includes external K type temperature probe.
• Sensor thread: 1/8" NPT
• May require weld on bung for temperature sensor (sold separately).

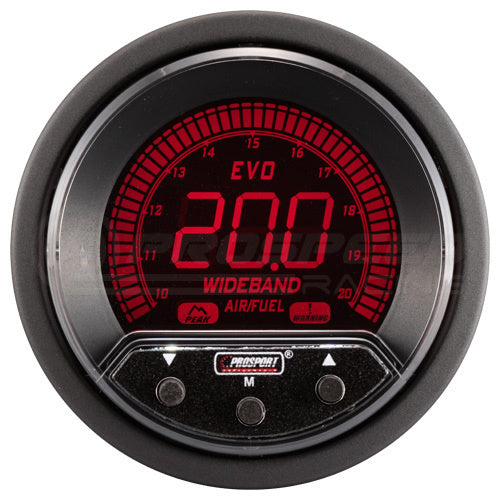

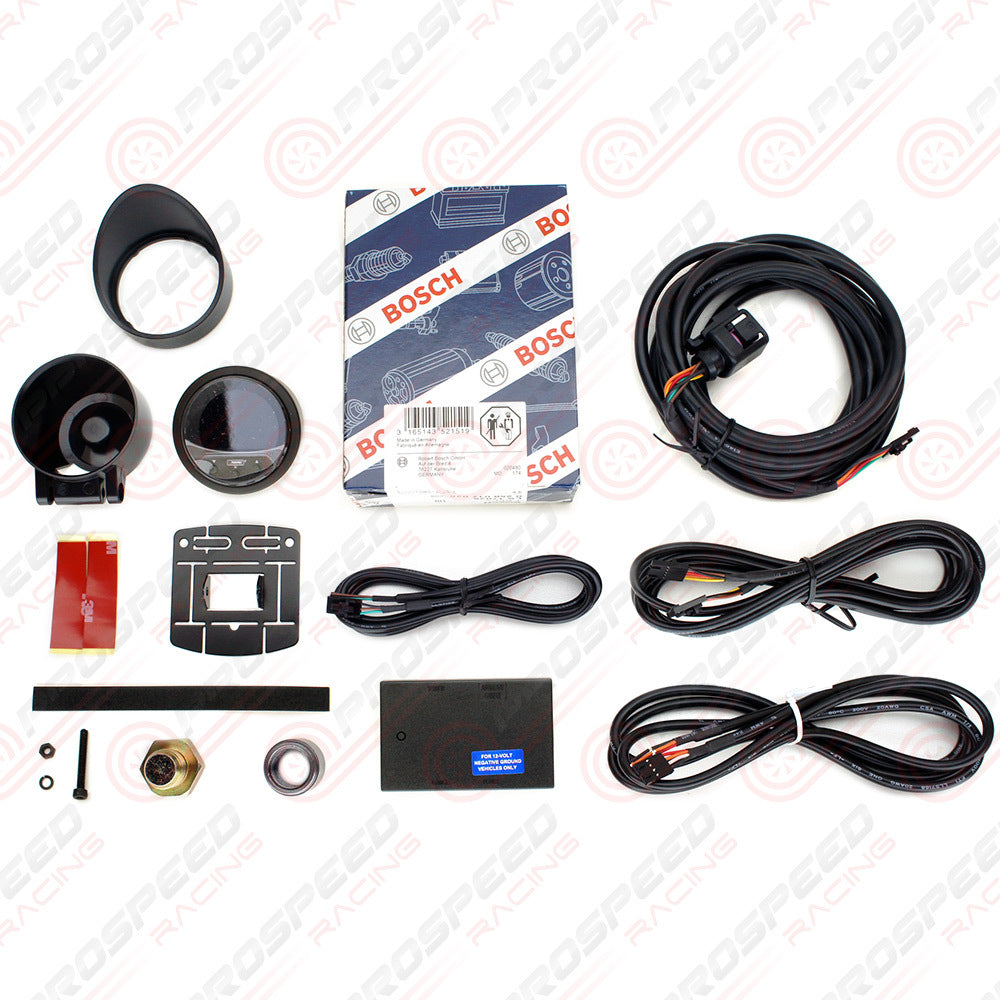

216EVOAFRPK4.9-WO - Wideband Air/Fuel Ratio Gauge

• 10:1 - 20:1 display range
• Includes Bosch 4.9 LSU O2 Sensor
• Requires O2 bung on Exhaust. Weld on bung included.
• Includes Wideband control box and allows for 0-5V analogue output for ECU tuning/logging (where supported).
• Must be wired directly to power. Cannot be daisy Chained.

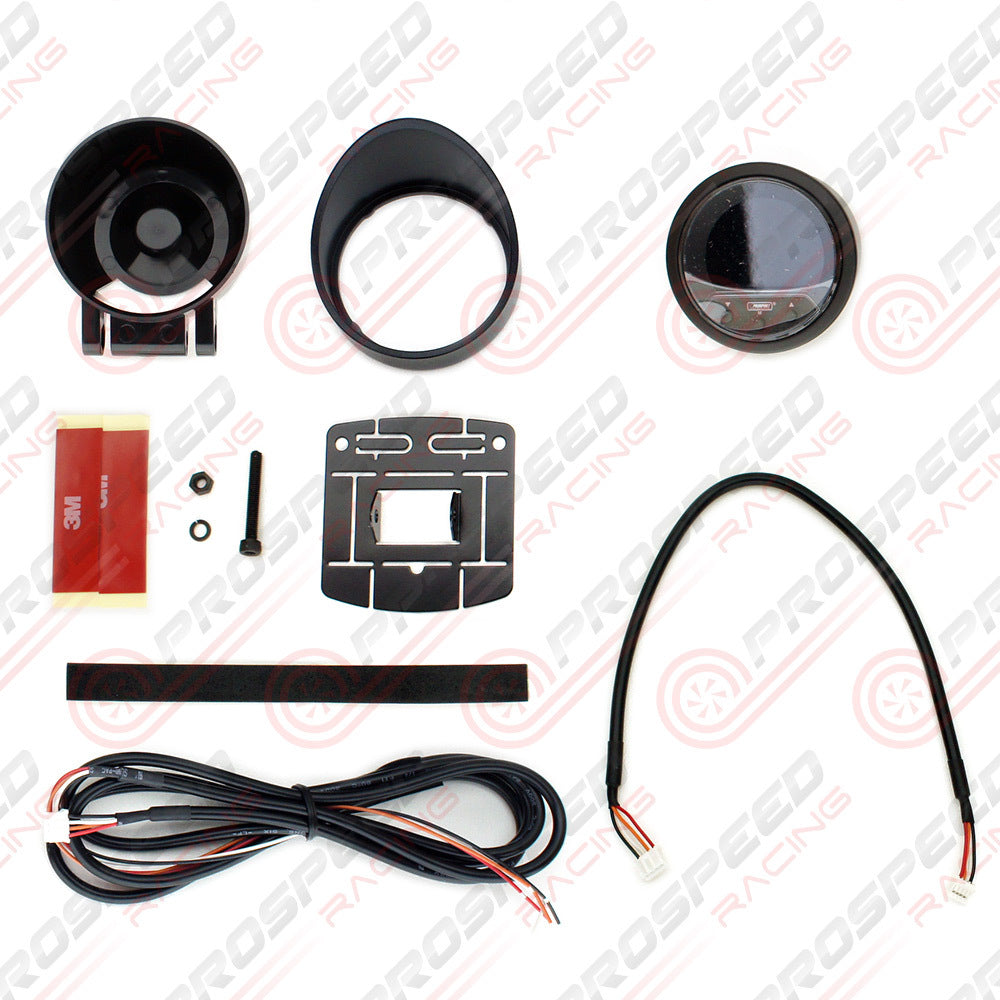

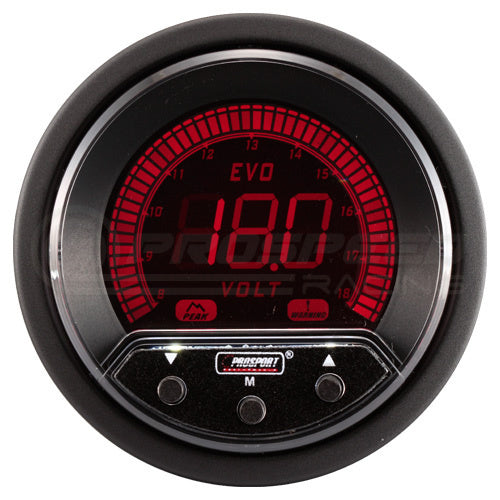

216EVOVO-PK - Electrical Volt Gauge

• 8-18V display range.
• Electrical gauge, no sensors required.
• Easiest gauge to install.

Wiring

Each gauge includes a universal, non-terminated wiring harness which requires professional installation, however products such as fuse taps (sold separately) can be utilised to simplify installation. In-line fuses (sold separately) are recommended to protect gauges from power spikes.

Some Prosport Gauges allow for auto dimming when wired to a headlight switching wire (see table below for dimmable models).

Gauge Series Comparison

Prosport offer a variety of gauges with a unique set of fucntions. See chart below for comparison:
