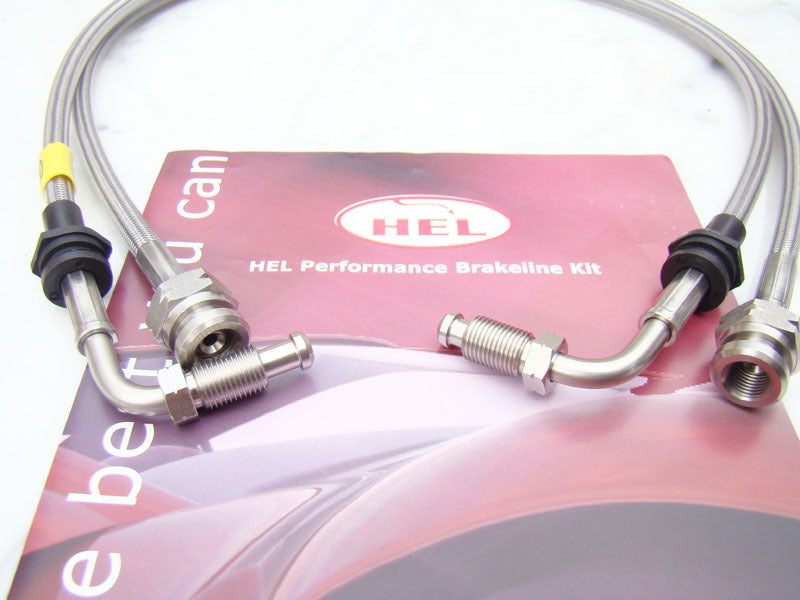

HEL Performance Stainless Steel Braided Brake Lines

Often Copied. Never Beaten: HEL Performance gives you the confidence to go faster, for longer.

The difference between winning and losing is a very fine line...

On every mile of every race track the importance of high performance precision braking control has been proven. Total feel and response give you the confidence you need on the road. The difference between an average driver and a great driver is those who can control speed and those who cannot. Speed is nothing without control and it's a very fine line - Which is why HEL Performance only supply very fine lines.

HEL Brake line kits eliminate that 'spongy' feeling often found with rubber hoses under extreme braking conditions - the time when performance is needed the most. By replacing the original rubber hoses with our complete system you will remove this sponginess and your braking will deliver new levels of precision. Don't risk using inferior brake lines when you can trust us to improve braking reliability and performance - We use stainless steel in our lines and our fittings. Most competitors use zinc plated fittings which are at risk from corrosion.

Each HEL Performance brake line kit is assembled in-house from the finest quality stainless steel fittings swaged directly to hard drawn tensile stainless steel braided hose. With our extensive automotive listings the complete kit will be manufactured to exact specifications, guaranteeing the look, the quality and the performance you demand. HEL Performance is the only UK company of its kind to design and manufacture its entire range of mainline stainless steel high-performance brake line fittings in-house, using Star Sliding Head CNC machines.

FMVSS-106 Certified for Worldwide Use

To be road legal, brake hoses must comply with the strict criteria and requirements of FMVSS-106. Set out by the Federal Motor Vehicle Safety Standards, these criteria and requirements are used by:

• DOT (United States of America)
• NHTSA (United States of America)
• ABE KBA (Germany)
• ADR (Australia)
• LTSA (New Zealand)
• IDR (Israel)
• MOT (Europe)

HEL Performance products are fully certified and registered with all the above organisations. That means you can use them anywhere in the world with utmost confidence.

Where Others Fall Short…

Many traditional hoses fail the ‘whip test’, which mimics the movement of the hose during normal use on a vehicle. Hoses are typically whip tested to destruction to determine durability, but must last for at least 35 hours to be certified.

In whip testing, four HEL Performance brake lines were removed from whip test apparatus after 40 hours, and were still fully intact. Two of the hoses were tested further – one for 70 hours, and another for 93 hours. Both remained intact – something the independent test centre had never experienced in over 20 years of testing.

This is testament to the research and design, and the quality of materials we use, in every HEL Performance product. When we began making brake lines in the UK, all our competitors were selling reusable items. Not for long… we quickly changed the market.

Colour Options

All HEL Performance brake and clutch lines include a durable PVC outer layer which by default is clear. For those wishing to add some style there are coloured PVC layers which transform your brake and clutch lines into something both functional and attractive. See below for the available colours. Simply select your desired colour from the dropdown box above.

Lifetime Warranty

We offer a no-quibble lifetime warranty on this item.

• Line inner material: PTFE
• Line outer material: Stainless steel (303/304) and protective PVC cover
• Fittings material: Stainless steel (303/304)
• Temperature range: -70°C to 260°C (-94°F to 500°F)
• Inside diameter: 3.5mm (0.138")
• Outside diameter: 7.5mm (0.295")
• Maximum working pressure: 290 Bar (4206 PSI)
• Burst pressure: 870 Bar (12618 PSI)
• Minimum bend radius: 38mm (1.496")

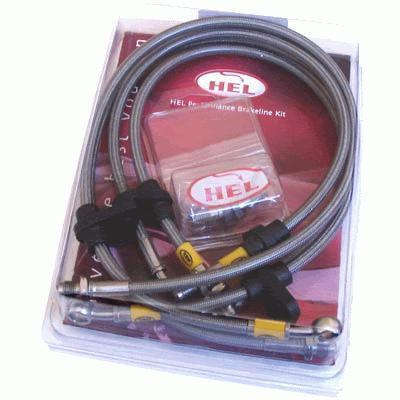

• 4 x Stainless steel braided brake lines
• ADR Certification Number Tags (one per line)
• Natural plain stainless steel banjo bolts (if the fittings require them)
• Copper crush washers (if the fittings require them)
• Instruction Leaflet with Stickers
