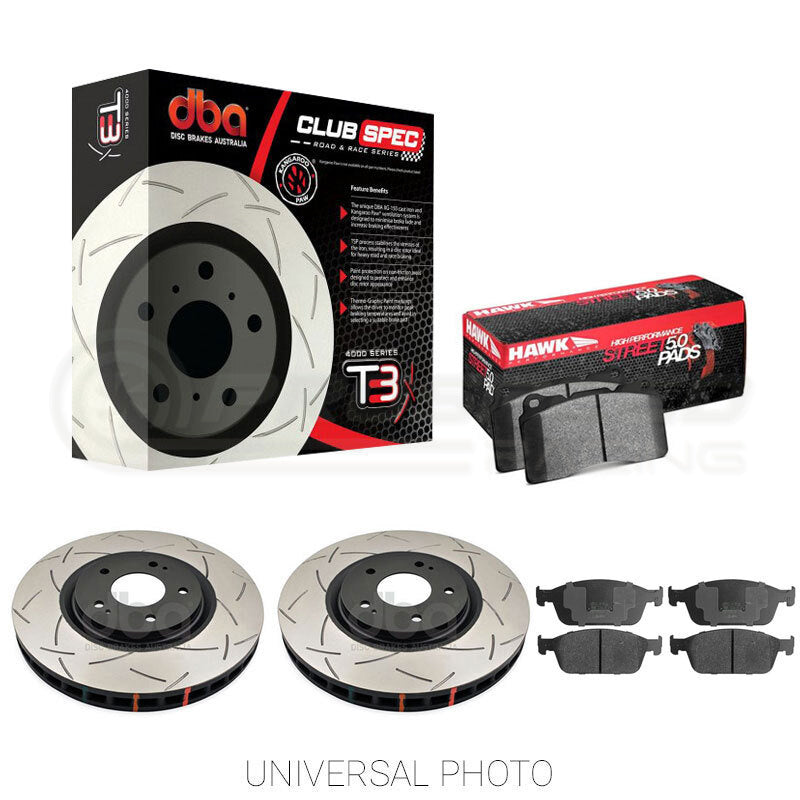

DBA T3 4000 Slotted Front Rotors w/Hawk Performance HPS 5.0 Pads

Notes Regarding Vehicle Compatibility:

Vehicle fitment provided in this listing is to be used as a rough guide only and may not actually suit your vehicle. Due to multiple brake packages sometimes being offered by manufacturers it may be necessary to measure your existing brake discs and/or pads and compare with the measurements provided by DBA here:

DBA Part Finder

Click "Part Number Search" tab and input SKU provided above.

Returns/Exchanges will incur restocking and freight fees or may be denied in certain circumstances.

DBA T3 4000 Series Slotted Rotors

DBA's 4000 Series T3 is the ultimate in direct replacement single-piece performance brake rotor. Featuring all the benefits of the 4000 Series plus DBA's patented world renowned T3 bi-directional slot design.

Built on the foundations of DBA's T2 slot, the T3 slot design features additional, precise, CNC machined tri-symmetrical slots, resulting in an even quieter, more responsive and smoother brake pedal feel. The T3 slot increases the number of exit points for brake pad friction dust and gases to escape through, further increasing the consistency and effectiveness of every brake stop.

DBA's revolutionary universal slot design eliminates the need for separate left and right slot designs seen in traditional rotor designs.

DBA's 4000 Series T3 rotors are recommended for all performance applications from street driving, 4x4 and SUV, light utility vehicles, track days, rally cars and armoured vehicles.

Hawk Performance HPS 5.0 Brake Pads

For years, engine builders have been pushing motors to the limits of their ability, and at Hawk Performance, we're closer than ever to pushing the ABS Rev Limiter to its limits. High Performance Street 5.0 pads give your vehicle the greatest stopping power and pedal feel without compromising ABS. HPS 5.0 is a Ferro-Carbon compound that provides advanced braking characteristics to enhance the driving experience. This compound combines the safety and quality of aerospace design with the braking technology of motorsports. The results are shorter stopping distances, improved performance under heavy braking conditions, and street car friendly characteristics.

Brake Pad Features:

• STREET USE ONLY
• Aggressive torque
• Great rotor & pad wear life
• Smooth & predictable control
• Designed to deliver high deceleration rates
• Consistent brake release characteristics for a smooth braking feel
• All Hawk Performance compounds are not compatible with carbon ceramic rotors. Hawk pads are designed to work with Iron/Metal rotors.
• 38 DegC-400 DegC operating temperatures
• 38 DegC-290 DegC optimal temperature range

Vehicle Fitment:

To ensure correct compatibility we always recommend comparing your existing brake pads and discs to the pad shape diagram and measurements provided in the specifications tab. Vehicle fitment provided is to be used as a guide only and may not suit your vehicle.

• 2006-2013 Holden VE Commodore SS-V Redline (Brembo, 355mm Disc)
• 2014-2017 Holden VF Commodore SS-V Redline (Brembo, 355mm Disc)

Important - Installation and Brake Bedding Procedure:

STREET

Installation instructions should be followed in accordance with the application?specific brake pad installation instructions provided by the vehicle manufacturer.

Brake Pad Installation Procedure:

• Install brake pads properly. Be sure pads are securely positioned in the caliper.
• Check Brake Fluid. Flush and replace, as needed.
• Check all hydraulic parts for excess wear and tear.
• Check rotor for deep grooves or scoring. Resurface or replace rotor, as needed.
• If rotors do not need resurfacing, then contamination from the previous brake pads must be removed. Sand rotors with 130?grit sandpaper using moderate pressure. Use soap and water to clean rotor surface after sanding. Rotors should be free and clear of oil, grease and brake fluid.
• Inspect calipers for freedom of movement. Lubricate where necessary.

Street Brake Pad Burnishing/Bedding?In Instructions:

• To break in the new components, make 6 to 10 stops from approximately 30 to 35 MPH
• applying moderate pressure.
• Make an additional 2 to 3 hard stops from approximately 40 to 45 MPH.
• DO NOT DRAG BRAKES!
• Allow 15 minutes for brake system to cool down.
• Your brakes are now ready for use and can be driven normally.

MOTORSPORTS

Installation instructions should be followed in accordance with the application?specific brake pad
installation instructions provided by the vehicle manufacturer.

Brake Pad Installation Procedure :

• Install brake pads properly. Be sure pads are securely positioned in the caliper.
• Check Brake Fluid. Flush and replace, as needed.
• Check all hydraulic parts for excess wear and tear.
• Check rotor for deep grooves or scoring. Resurface or replace rotor, as needed.
• If rotors do not need resurfacing, then contamination from the previous brake pads must be removed. Sand rotors with 130?grit sandpaper using moderate pressure. Use soap and water to clean rotor surface after sanding. Rotors should be free and clear of oil, grease and brake fluid.
• Inspect calipers for freedom of movement. Lubricate where necessary.

Motorsports Brake Pad Burnishing/Bedding?In Instructions:

• After reaching medium speed engage brake pedal to slow car without coming to a complete stop. Release pedal quickly and do not drag brakes. Repeat four or five times.
• At higher speeds engage brake pedal to slow car without coming to a complete stop. Release pedal quickly and do not drag brakes. Repeat five times.
• At or near race speed engage brake pedal to slow car without coming to a complete stop. Release pedal quickly and do not drag brakes. Repeat three times. Allow a few seconds between brake engagements while car is in motion.
• Do not hold brake pedal. Park car for approximately 20 minutes or until brake rotors are completely cool to the touch.
• If during the above steps the brake pedal becomes soft or brake fade is noticed, park the car immediately for approximately 20 minutes. Do not hold brake pedal.

IMPORTANT REMINDERS WHEN BURNISHING/BEDDING BRAKE PADS:

• Do not attempt to use badly worn or damaged rotors with new brake pads.
• Do not drag brakes while car is moving during break?in procedure.
• Do not engage pedal while car is stopped at any time following the break?in procedure.
• Upon completing the procedure, allow the brake system to completely cool before racing.
• Applying the pedal a few times before the start of the race will allow the brake pads to heat up before attempting to reach race speeds.
• Clean a used rotor surface with fine sand paper or steel wool, rinse with water, dry and install before bedding new pads.
• Some forms of racing don’t allow time for the proper break?in procedure to be performed. However, it is still very important to attempt to perform at least the core of the procedure: Build up heat slowly and allow the system to completely cool down before racing if possible

Front Disc Specifications:

• Diameter (mm): 355
• Height (mm): 50
• Thickness (mm): 32
• Minimum Thickness (mm): 30
• Centre Hole (mm): 67.4
• Stud Holes: 5
• Weight (kg): 12.1

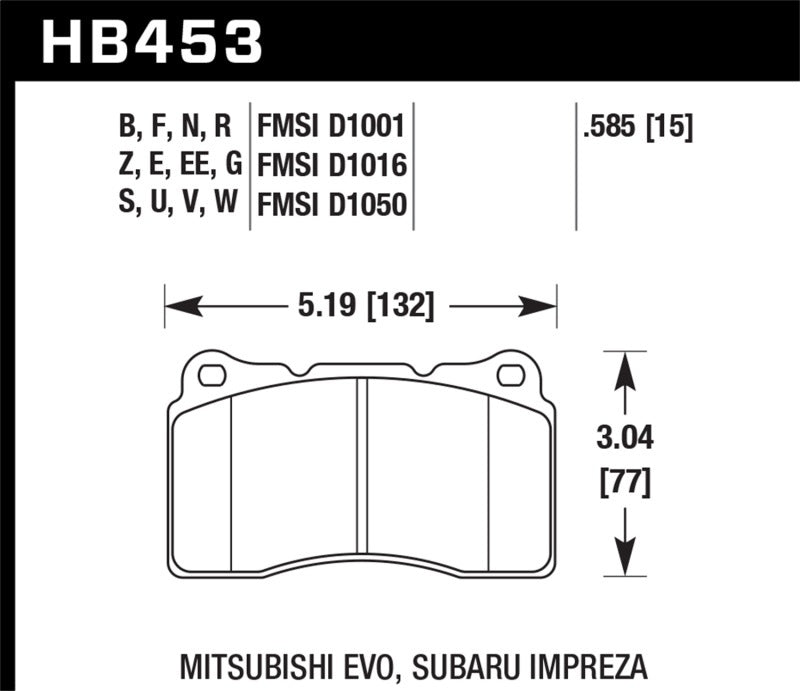

Front Pad Specifications:

• Pad Overall Height (mm): 77.3
• Pad Overall Length (mm): 131.8
• Pad Thickness (mm): 14
• Weight (kg): 2.28
