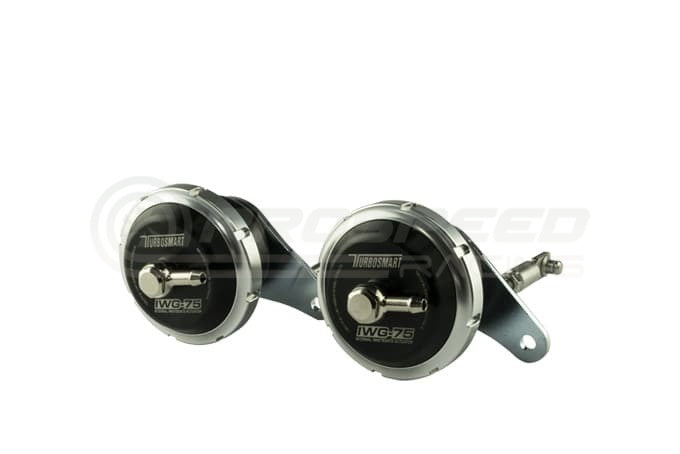

Turbosmart IWG75 Internal Wastegate Actuator
Nissan GTR R35
In Stock :
This product is in stock & ready to be dispatched.
Very low inventory :
This product has very limited stock remaining.
Incoming :
Product will be in stock soon.
Usually Ships In :
This product is not ready for immediate dispatch and will ship in the timeframe displayed.
Sold Out - Out of stock :
This product is not available at this time. Request ETA Information
$649.95
Unit price
/
Unavailable
Earn [points_amount] when you buy this item.
-
International Shipping
We ship Worldwide
-
AUSSIE OWNED
-
FAST DISPATCH
-
WE PRICE MATCH
-
FLAT RATE SHIPPING
Description
Description
Turbosmart Upgraded Wastegate Actuators have been developed to provide maximum possible boost response for your factory frame turbocharger. The Turbosmart IWG75 Series of upgraded Actuators benefit from an increased 'Working Ratio' over the factory equipment resulting in improved boost response, throughout the RPM range.
This Improved 'working ratio' is achieved through an increase to the effective surface area of the diaphragm & revisions to the actual springs fitted resulting in greater leverage of the forces the actuator is working against (boost and backpressure) while still being super-responsive.
Upgrading with the same base pressure as factory, you can expect a broader boost & torque curve through peak boost being achieved earlier in the RPM and being held longer, into higher RPM. These improvements can be amplified with higher base pressures, however tuning & recalibration is likely required.
Available In
7 psi / 0.50 BAR: TS-0615-2072
19 psi / 1.31 BAR: TS-0615-2192
24 psi / 1.65 BAR: TS-0615-2242
GenV Twin Port - 14psi / 1.0 BAR:TS-0615-7143
GenV Twin Port (Inc Position Sensor Caps) - 14 psi / 1.0 BAR: TS-0615-7144
Features
Proprietary Silicon Nomex Diaphragm
Choice of Springs from 3psi to 26psi (Optional)
High Grade Billet Aluminum Construction
Stainless Steel Rods and Clevis
Turbosmart Unique Locking Collar System
Notes
The 7 psi version is a direct replacement for the factory item. All other versions will require tuning / calibration of your engines ECU.
This is a bolt on fitment for the turbochargers as fitted factory to the VR38 3.8 Liter Twin Turbo Powered Nissan GT-R R35 from 2007 - 2021.
This Improved 'working ratio' is achieved through an increase to the effective surface area of the diaphragm & revisions to the actual springs fitted resulting in greater leverage of the forces the actuator is working against (boost and backpressure) while still being super-responsive.
Upgrading with the same base pressure as factory, you can expect a broader boost & torque curve through peak boost being achieved earlier in the RPM and being held longer, into higher RPM. These improvements can be amplified with higher base pressures, however tuning & recalibration is likely required.
Available In
7 psi / 0.50 BAR: TS-0615-2072
19 psi / 1.31 BAR: TS-0615-2192
24 psi / 1.65 BAR: TS-0615-2242
GenV Twin Port - 14psi / 1.0 BAR:TS-0615-7143
GenV Twin Port (Inc Position Sensor Caps) - 14 psi / 1.0 BAR: TS-0615-7144
Features
Proprietary Silicon Nomex Diaphragm
Choice of Springs from 3psi to 26psi (Optional)
High Grade Billet Aluminum Construction
Stainless Steel Rods and Clevis
Turbosmart Unique Locking Collar System
Notes
The 7 psi version is a direct replacement for the factory item. All other versions will require tuning / calibration of your engines ECU.
This is a bolt on fitment for the turbochargers as fitted factory to the VR38 3.8 Liter Twin Turbo Powered Nissan GT-R R35 from 2007 - 2021.
