 |  SKU: 20-0539

Radium Baffled Oil Cap - Holden Commodore/HSV LSX V8

Holden Commodore/HSV LSX V8

In Stock :

This product is in stock & ready to be dispatched.

Very low inventory :

This product has very limited stock remaining.

Incoming :

Product will be in stock soon.

Usually Ships In :

This product is not ready for immediate dispatch and will ship in the timeframe displayed.

Sold Out - Out of stock :

This product is not available at this time. Request ETA Information

$99.00

Earn [points_amount] when you buy this item.


Description

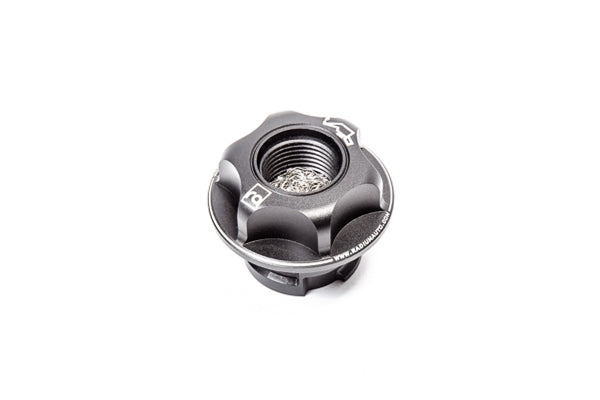

Anodized aluminum billet oil cap for many General Motors vehicles. There are 2 different oil cap styles used on LS-based engines. This oil cap has special features that consolidate the differences.

The top 7/8"-14 threaded port accepts 10AN ORB adapter fittings. Furthermore, it features internal stainless steel baffling that can be used for crankcase venting air/oil separation.


20-0539 OIL CAP, GM

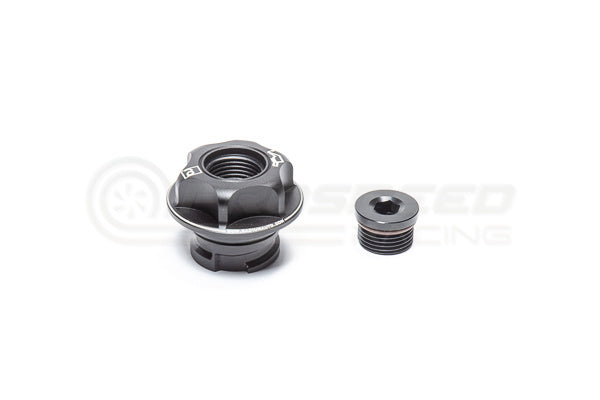

Anodized aluminum billet oil cap with a 10AN ORB plug to block-off the internal baffle. This is simply a replacement oil cap. Nothing else is required.

Confirmed Engine Compatibility:

  • LS1
  • LS2
  • LS3
  • LS4
  • LS6
  • LS7
  • LS9
  • LSA
  • L76
  • L99
  • L9H
  • LT1
  • LT2
  • LT4

NOTE: there are other compatible engines not listed.

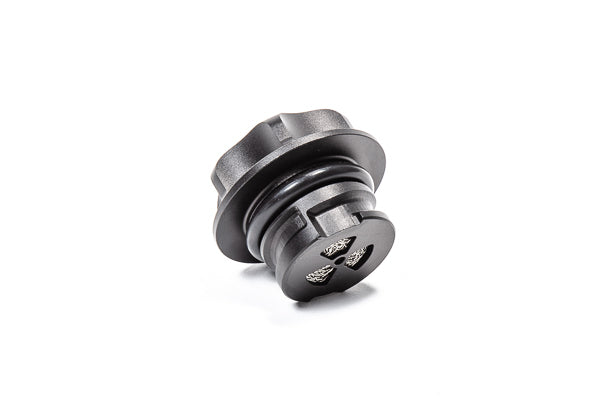

Optionally, the center 10AN ORB plug can be unscrewed and removed. Underneath is a cleanable and reusable stainless steel baffle for air/oil separation. Click HERE for a list of compatible 10AN ORB fittings to make a custom crankcase venting setup.



Fitment Table
