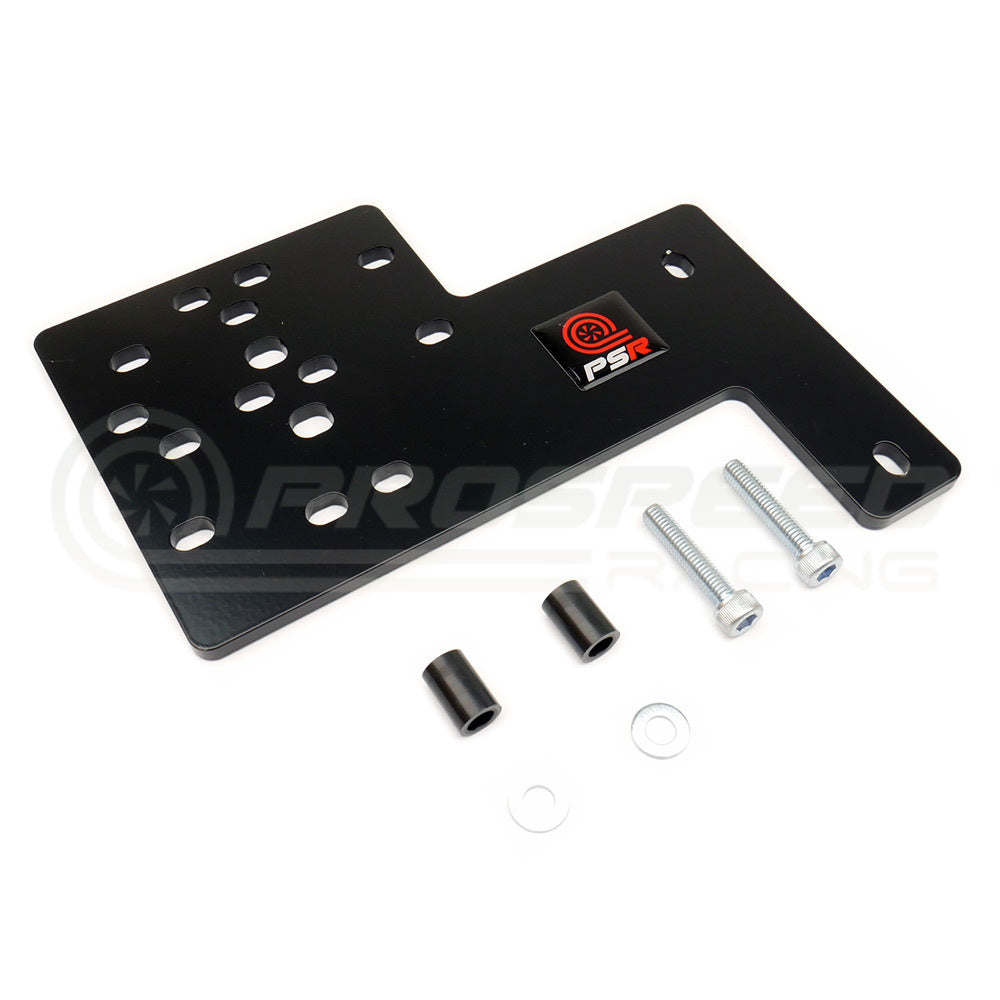

PSR RHD Compatible Multi Fit AOS/Catch Can Mounting Bracket

Too long have owners of Right Hand Drive cars had to live with seeing the "Left Hand Drive Fitment Only" messages when looking for a bolt one Air Oil Separator kit. No longer, as PSR have developed a one size fits all solution to mounting various catch cans and Air Oil Separators to the 2008-2014 Subaru WRX and 2008+ Subaru STI. Utilising 3D scanning and CAD processes we have produced a bracket that bolts on to existing holes in the STI engine bay and allows direct fitment with several brands of popular AOS and Catch Can kits.

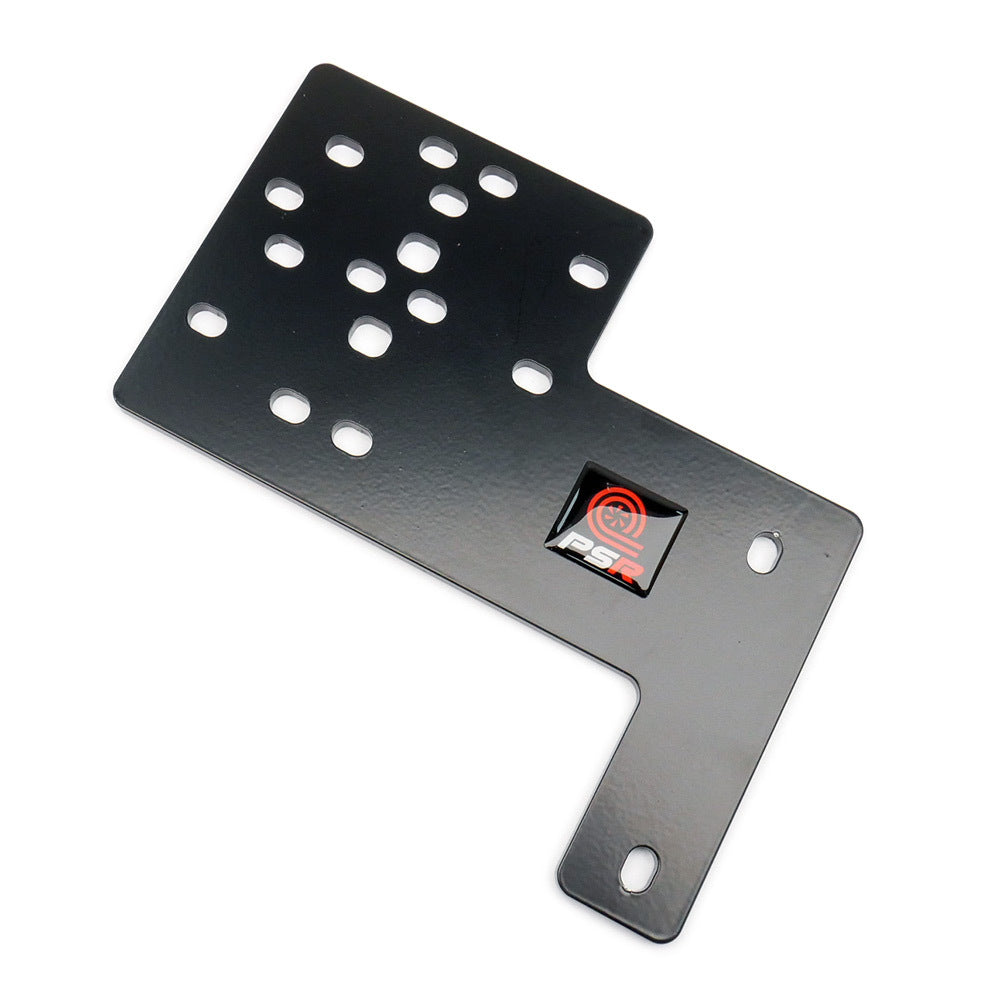

The PSR AOS bracket is laser cut from 5mm thick steel to ensure that even the biggest catch can will stay secure under the toughest driving conditions and coated in black for a stealthy, factory look.

Notes:

• Supplied hoses/fittings from certain catch can/AOS kits may not be sufficient to install their product in this new location. Additional hoses/fittings may be required and sourced separately. For example, some cans may only include straight fittings where 90-degree fittings will work best.

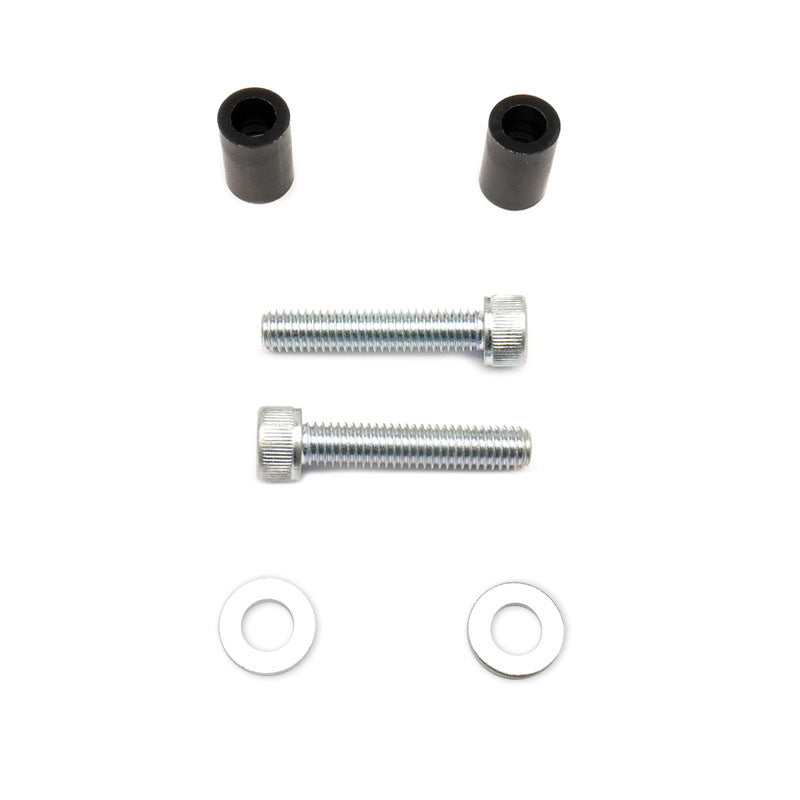

• Spacers are included to allow clearance of the fuel lines for the larger cans (IAG/Cobb). With some of the smaller cans however these spacers don't have to be used.

Features:

• Bolt on fitment, uses existing mounting holes in engine bay
• Suits wide range of catch cans and Air Oil Separators
• Includes replacement mounting hardware
• Laser cut from 5mm thick steel

Current Catch Can Compatibility:

• IAG Performance Street Series AOS - Part # IAG-ENG-7181
• IAG Performance Competition Series AOS - Part # IAG-ENG-7281
• Cobb Tuning AOS - Part # 822615
• Perrin Performance AOS - Part # PSP-ENG-607
• Radium Engineering Dual Catch Can Kit - Part # 20-0208-08
• Radium Engineering Universal AOS - Part # 20-0219
• Radium Engineering Universal Competition Catch Can - Part # 20-0072 (Not compatible with extended version)
• Mishimoto Universal Baffled Catch Can - Part # MMBCC-UNI
• PSR Universal Large Catch Can - Part # PSR_LRG_CAN

Installation Instructions:

• Click to download

Vehicle Fitment:

• 2008-2014 Subaru WRX GE/GH/GR/GV
• 2008-2014 Subaru STI GR/GV
• 2015-2021 Subaru STI VA

2008-2014 WRX Fitment Notes:

• Factory bracket for the engine wiring harness plug is removed. We recommend disconnecting and re-routing this harness underneath the upper A/C hose and then cable tieing down low.
• Bracket is compatible with the Process West Verticooler, however for larger cans such as the IAG/Cobb a smaller blow off valve such as the Turbosmart Kompact (plumb back) will be required to allow clearance.

2008-2014 STI Fitment Notes:

• Factory bracket for the engine wiring harness plug is removed. We recommend disconnecting and re-routing this harness underneath the upper A/C hose and then cable tieing down low.

2015-2021 STI Fitment Notes:

• Factory bracket for the engine wiring harness plug is removed, but with certain catch can combinations this can be mounted upside down in conjunction with the PSR AOS bracket and the the plug will clip on again. See photos below
• With the IAG/Cobb AOS a new bracket is supplied for this plug which will just need to be bent 90-degrees and mounted in front of the PSR bracket on the lower hole.
